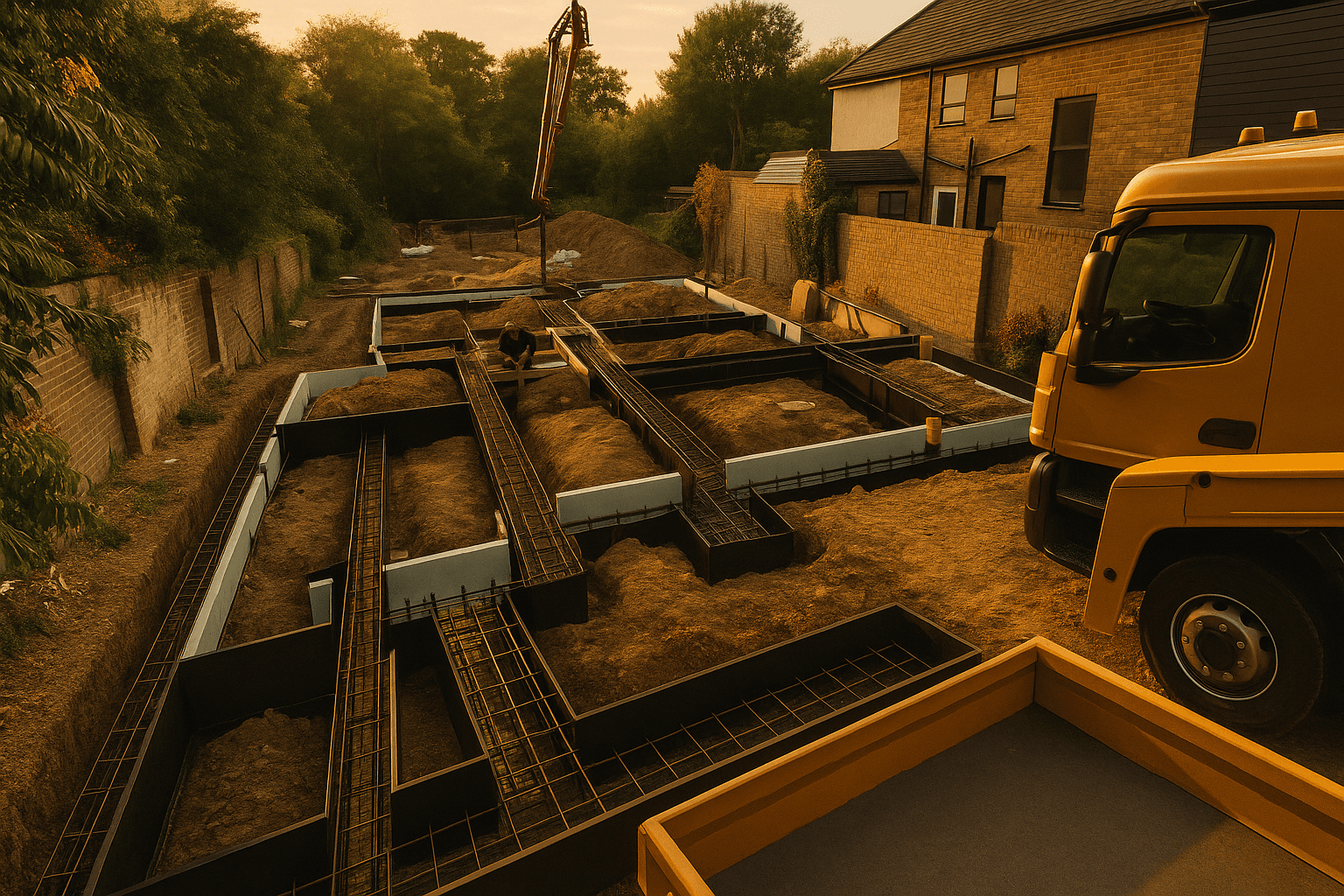

Foundations being prepared at a client's site
Foundations being prepared at a client's site
Foundations being prepared at a client's site

What Are Pile Foundations? Building on Strong Ground

Explore pile foundations and their vital role in building stability. Learn why piled foundations are chosen for challenging ground, heavy loads, and extensions foundations.

Every structure, from a small extension to a towering skyscraper, relies on its foundations to safely transfer its weight to the ground. While many smaller buildings might use shallow solutions like strip foundations, certain conditions demand a more robust approach. This is where pile foundations come into play. Essential for ensuring stability in challenging ground, piled foundations are a cornerstone of modern construction. This blog post will explore what pile foundations are, why they are used, and how they provide the critical support for a wide range of structures, distinguishing them from other types of foundations.

Understanding Pile Foundations

A pile foundation is a type of deep foundation that transfers the load of a structure through weak or unstable soil layers to stronger, more competent soil or rock strata below. Unlike shallow foundations, which spread the load over a large area near the surface, pile foundations consist of long, slender elements (the "piles") driven or cast into the ground. These foundation piles essentially act as columns extending deep into the earth, ensuring the building remains stable even when the surface soil lacks sufficient bearing capacity. This technique is central to foundation piling and provides crucial support for substantial structures.

Why are Pile Foundations Used?

Piled foundations are chosen for a variety of reasons, primarily when the shallow soil cannot adequately support the proposed building's weight. Key scenarios include:

  • Weak Surface Soil: When the upper layers of soil are soft, compressible, or unstable (e.g., clay, silt, loose sand).

  • Heavy Loads: For very tall, heavy, or sensitive structures that exert significant pressure on the ground.

  • High Water Table: Where groundwater would compromise the integrity of shallow foundations.

  • Expansive Soils: Soils that swell and shrink significantly with moisture changes, which could damage conventional foundations.

  • Minimising Settlement: To prevent excessive or differential settlement, which can lead to structural damage.

  • Specific Site Constraints: Such as building near existing structures, on slopes, or in areas prone to seismic activity.

These factors often lead engineers to specify piling foundations as the most reliable solution.

Different Types of Pile Foundations

Just as there are different types of foundation overall, there are also various piling types or pile footings, each suited to specific ground conditions and load requirements. The choice of pile foundation depends on factors like soil strata, load magnitude, and site specifics. Common pile foundations include:

  • Bored Piles: Created by drilling a hole and then filling it with concrete and reinforcement (e.g., CFA piles, rotary bored piles, mini piles).

  • Driven Piles: Pre-formed piles (concrete, steel, timber) hammered or vibrated into the ground.

  • Screw Piles: Large steel screws twisted into the ground.

Each method has its advantages, with foundation piles tailored to the project's unique needs. For example, in residential applications like extensions foundations, mini piling is a popular choice, while larger commercial projects might use extensive piling foundations.

Pile Footings vs. Strip Foundations

It's important to differentiate pile footings from more common shallow foundations like strip foundations.

  • Strip foundations: These are continuous strips of concrete that run under load-bearing walls, spreading the weight over a relatively wide area close to the surface. They are suitable for lighter loads and stable ground.

  • Pile footings: A pile footing typically refers to a cap or block of concrete that connects multiple foundation piles together at the top, transferring the building's load evenly onto the group of piles. It's the transition point between the structure and the deep piling foundation.

For areas with challenging ground, like often found in Foundations Woking where varying soil conditions can occur, understanding these distinctions is crucial for robust building design.

The Role of Piling in Retaining Walls

Piling foundations are not just for buildings; they also play a vital role in the stability of structures like retaining walls. While simple concrete block retaining wall designs might rely on gravity or shallow footings, taller or heavily loaded retaining walls often require deep foundation piles to withstand lateral earth pressures and prevent overturning. This ensures the long-term stability of the wall, preventing erosion and retaining earth effectively, contributing to sturdy retaining wall ideas.

In Conclusion

Pile foundations are an indispensable category among the types of foundations, providing deep, reliable support when shallow alternatives are insufficient. By transferring structural loads to stronger ground layers, piled foundations ensure the stability and longevity of everything from modest extensions foundations to monumental structures. Understanding the purpose of a pile foundation, the different types of foundation available, and when foundation piling is necessary is fundamental to safe and durable piling construction. For the foundations of a building, whether it's supporting a new build or reinforcing an existing concrete block retaining walls, pile footings are key to building on solid ground.
